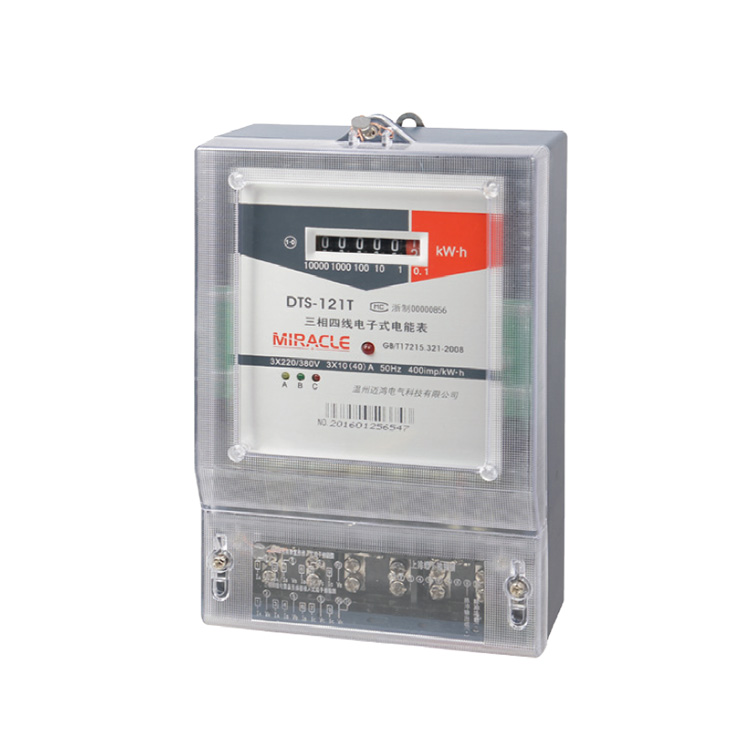

DTS-121T 三相电子式有功电能表
详情

      DTS-121T 型板前式安装三相电子式有功电能表系我公司采用微电子技术与专用大规模集成电路,应用数字采样处理技术及SMT工艺等先进技术研制开发的三相有功电能表。该表技术性能完全符合IEC62052-11和IEC62053-21国际标准中1级三相有功电能表的相关技术要求,能直接精确地测量额定频率为50Hz或60Hz三相交流电网中负荷的有功电能的消耗,供安装于室内或室外表箱中使用。该表由步进电机式脉冲计数器显示有功用电量,具有可靠性好、重量轻、外形美观、安装方便等特点。

      DTS-121T Series front board mounted three phase electronic active energy meter is used for measuring electric energy in three phase active energy system.This meter adopts many advanced technologies of research and development, like micro-electronic techniques, specialized large-scale integrated circuit, digital sampling and processing technology, SMT technique and so on. The meter completely accord with relevant technical requirements stipulated in the International Standards IEC62052-11 and IEC62053-21  for Class 1 three phase active energy meter.It can accurately measure 50Hz or 60Hz active energy consumption from three phase AC electricity net.It is used for setting in indoor or outdoor meter box.It has following features:High reliability,light weight,specious appearance,convenient installation etc.


板前式三点固定安装,上下安装孔中心距198-212mm,可由用户任意选择;
6位(999999kWh)步进电机式脉冲计数器显示;
标准配置仅一个有极性的无源电能脉冲输出端口,可选择增加一个无极性的无源远动电能脉冲输出端口,方便与各种AMR系统联接,符合IEC62052-11和IEC62053-21标准;
4个LED分别指示每相电源状态和电能脉冲信号;
标准配置不检测负荷电流潮流方向,可选择自动检测负荷电流潮流方向,并由一个单独的LED指示(请在定货时指明);
单方向三元件测量三相四线有功电能消耗,与负荷电流潮流方向无关,符合IEC62052-11和IEC62053-21标准;
标准配置直接接入式使用,可选择5+1位脉冲计数器显示;
标准配置短的接线端子盖,可选择延长型接线端子盖,保护用电安全。

Front board three fixed installation, 198-212mm between up and down mounting holes,which user can choose freely.
Standard configuration 6 digits (999999kWh)step motor impulse register display, may select 5+1 digits step motor impulse register display
Standard configuration with polarity passive energy impulse output terminal (polarity), May select polarity passive remote energy impulse output terminal (nonpolarity), complying with standard IEC 62053-21,IEC62052-11 and DIN 43864
4 LED lights instruct respectively for power supply state for each phase and signal of power impulse.
May select automatic detection the load current flow direction and instruction on special LED light.
Measure three phase four wire active energy consumption in one direction with three element, it is not influenced by the direction of load current flow. Standard configuration direct connection.
Standard configuration short terminal cover, may select extension terminal cover to protect use safety.
